Mapping of the Body |
|||||

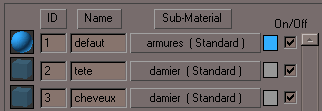

Here we hide the body leaving only the head, a little of the neck and the hair. Create a Material with 3 Sub-Materials as shown. |
![]() |
||||
![]() |
Let us start with the hair as ID 3. |
||||
|
|||||

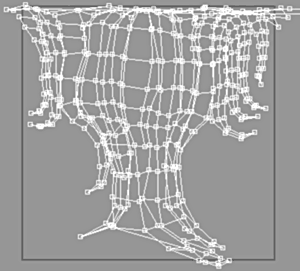

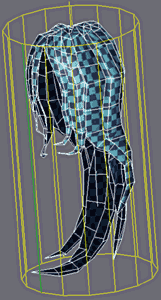

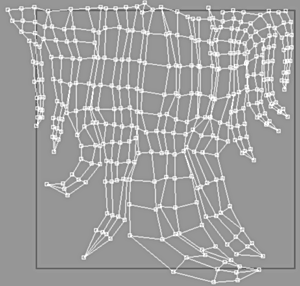

A cylindrical mapping with the seam in the front. On the right-hand side the UV mesh.
Note that at the top of the UV it is completely stretched out and not easy to adjust. |
|||||
![]() |
Start to adjust the mesh by moving it from the remainder of UV with the Expand Selection function from the base point. |
||||

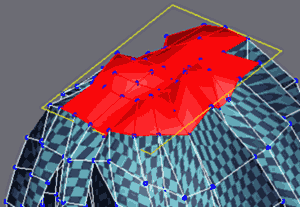

Select the faces of the Scalp and apply a Planer Map. |
![]() |
||||

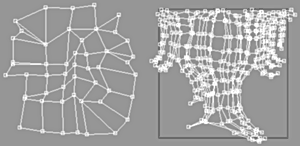

Move the new set of UVs and scale them up to a Large size. We will be knitting the Scalp to the rest of the hair later. |
![]() |
||||

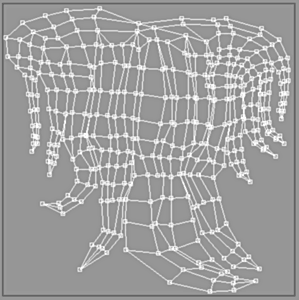

Now adjust the remainder of the hair. |
![]() |
||||
![]() |
Separate the Scalp UV into 2 parts, use the dividing line from the center of the hair. |
||||
|
|||||

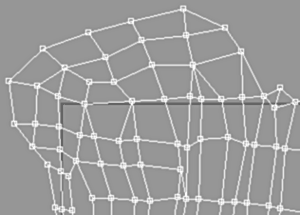

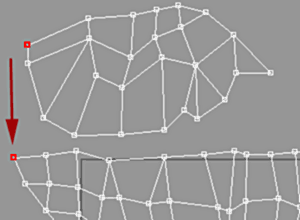

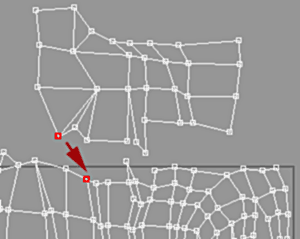

Select the identical points between the 2 sets and then Target Weld the points (in the top right). Adjust the remainder of the points correctly. |
![]() |
||||
We do the same again with the other pieces. |
![]() |
||||
|
|||||

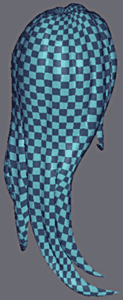

The UVs for the Hair are finished and on the right is the object with smoothing. |
|||||
To finish, the head with the ID 2. |
![]() |
||||
A basic cylindrical mapping and UV correspondents. |
![]() |
||||
|
|||||
Remappez with a Map Double diffusion in the UVW Unwrap faces with the distorted mapping. Separate and put on the scale the new set of UV. |
|||||
![]() |
Cross of them two and weld it with the remainder of the UV of the head.
This part will still display distorsions but it is under the hair thus that hardly has importance. |
||||
![]() ![]() ![]() |

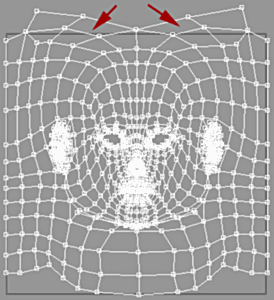

The part of UV under the chin is not well unfolded.
For that select the points of the bottom of the neck and to increase the value of the software selection, the close points change color according to the influence of the selection.
|
||||
![]() |
|||||

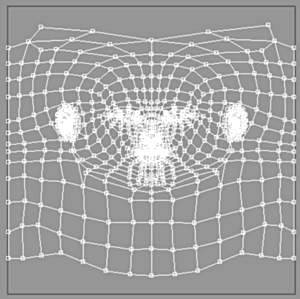

Adjust the whole of UV with a scale not vertical uniform. | |||||
|
|||||

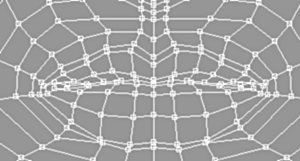

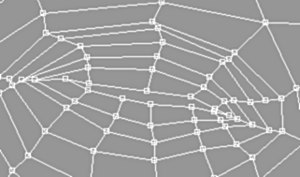

Certain parts of the faces are adjusted more specifically as the mouth, the nose, the eyes, these zones or UV overlap is that it is necessary to unfold.
The ear in this case is just widened, it is hidden partly by the hair and it is not necessary to spend time too much on this part. |
|||||

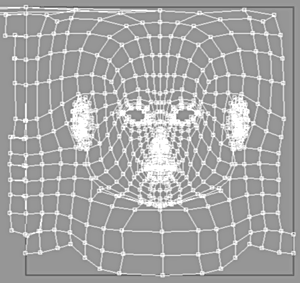

The head with the finished mapping. |
![]() |
